Applied for the separation of the pulverulent particles available on the air, the Filter type JET performs an amazing filtering action. The sleeves dress cages properly endowed with quick coupling fixation what enables an easy and rapid change of sleeves.

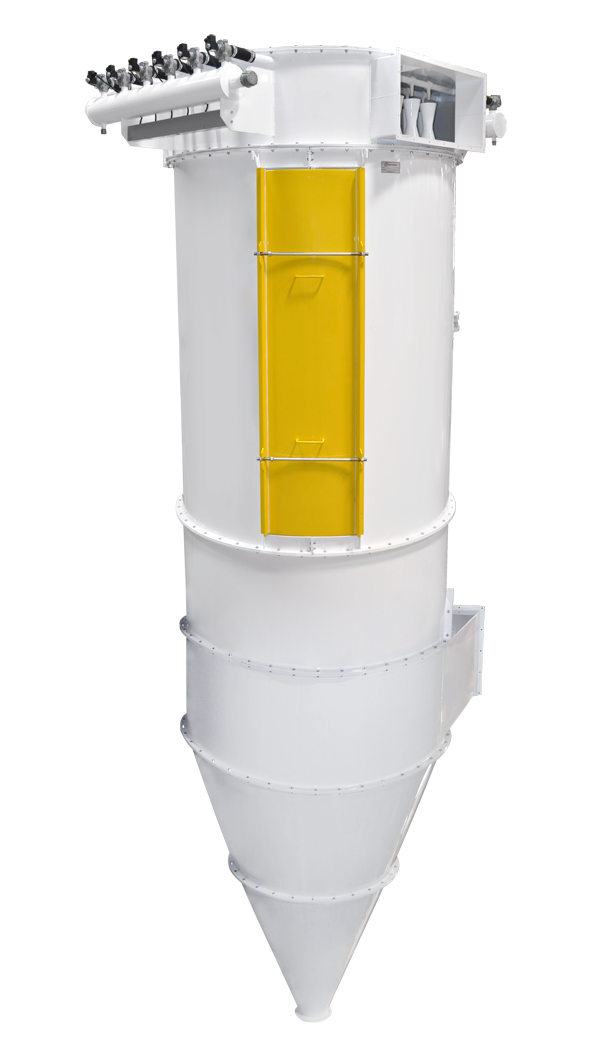

Consisting of a cylindrical steel casing with wide access doors, intake for the air to be purified located at its lower level, tangent or frontally in relation to the casing, depending on the application or layout.
Full discharge cone motorized rotary valve. As an option, the cone can have its height decreased by the use of a motorized flat extractor type SAS.
Superior chamber endowed with compressed air insufflation system injection nozzles. The system is controlled through an electronic panel that carries out the sequencing and frequency sleeves cleaning.
Complete with Venturi-type diffusers for the perfect directing, and simultaneously, expansion of the high pressure air jet enabling an efficient cleaning of the sleeves.
External compressed air collectors equipped with easy access electro-valves assure suitable availability of the cleaning air.
It is optionally supplied with a differential-pressure meter for the sleeves status indication.
