Product - Mills

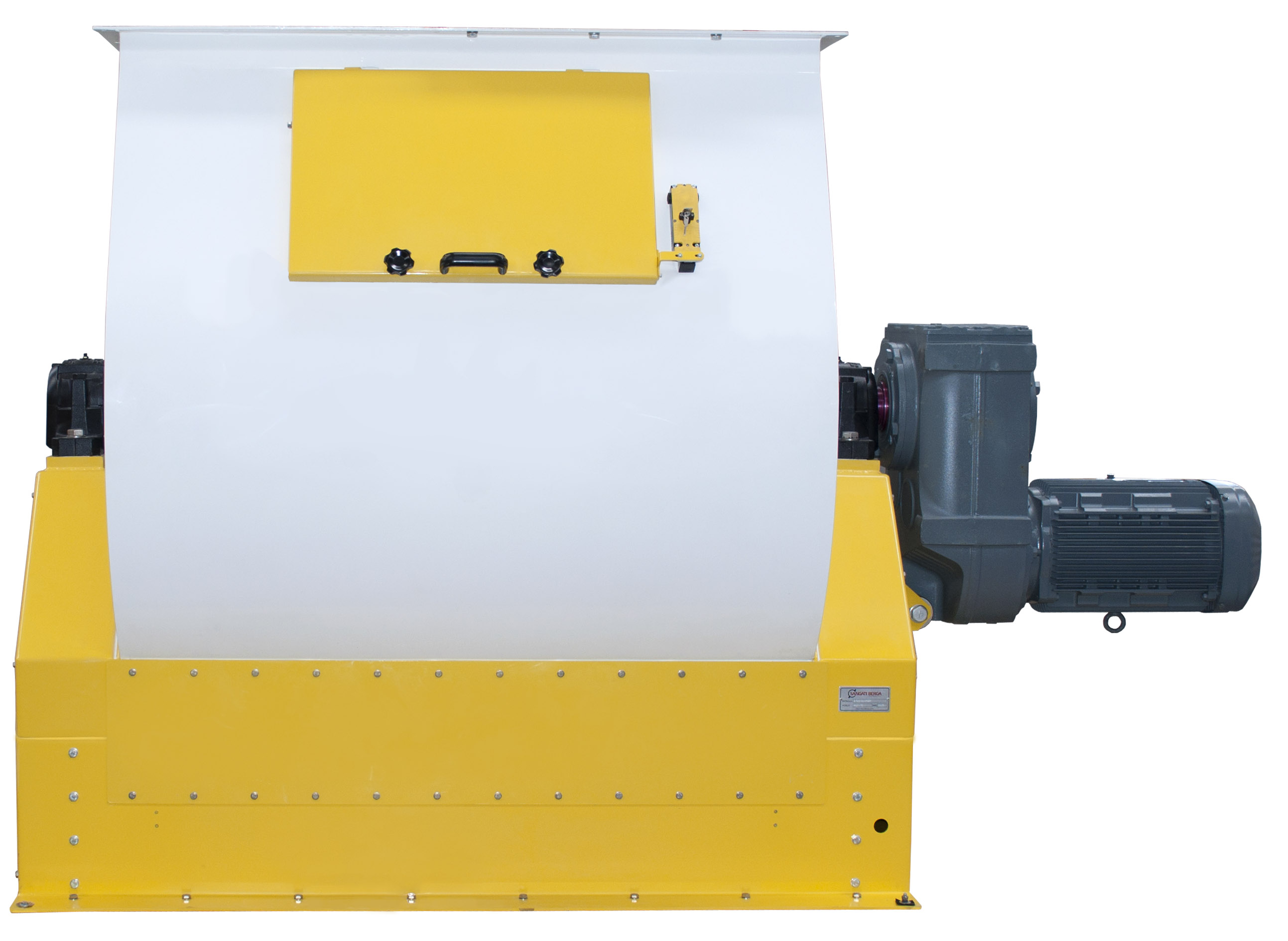

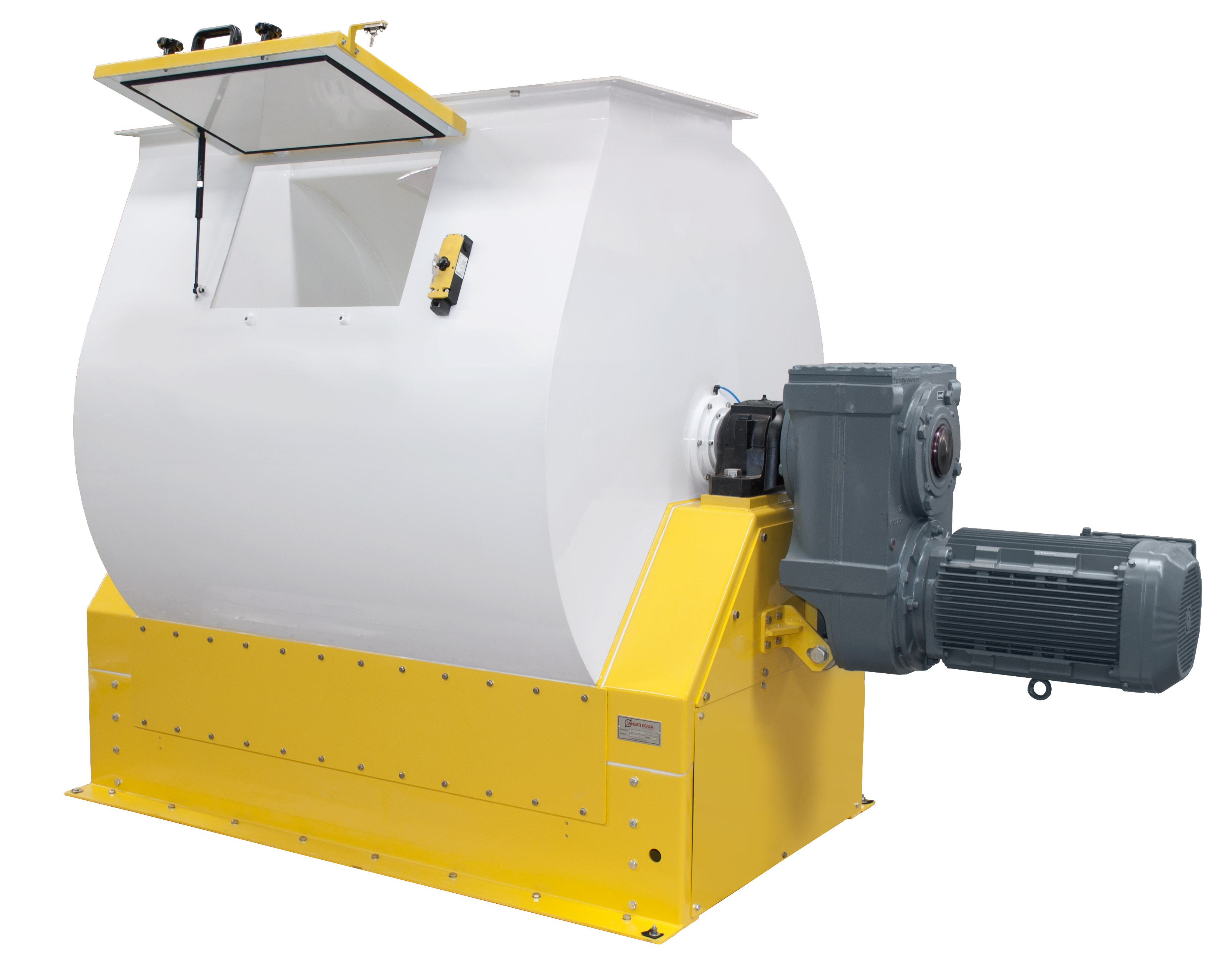

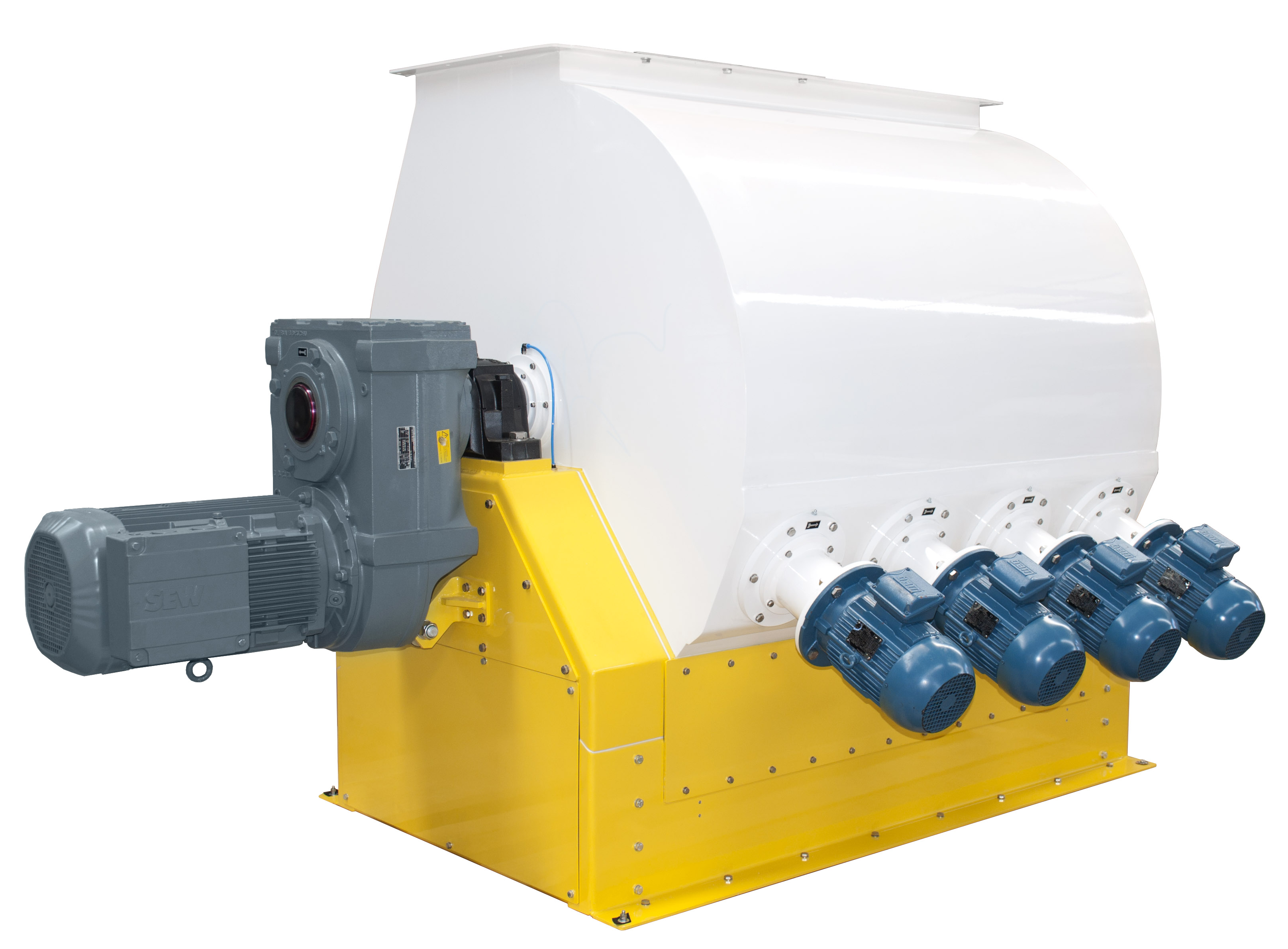

The Mixers type MOV represent the ultimate mixing technology for flour and feed mills. The machine presents an innovative design studied to offer higher performances compared ditional mixers. It consists of a steel casing, inside which a rotor is arranged, equipped with opposed paddles or ploughs. The shaft, mounted on roller bearings, is driven by a pendular geared motor directly keyed onto the shaft. A pneumatic system ensures dust seal cleaning.

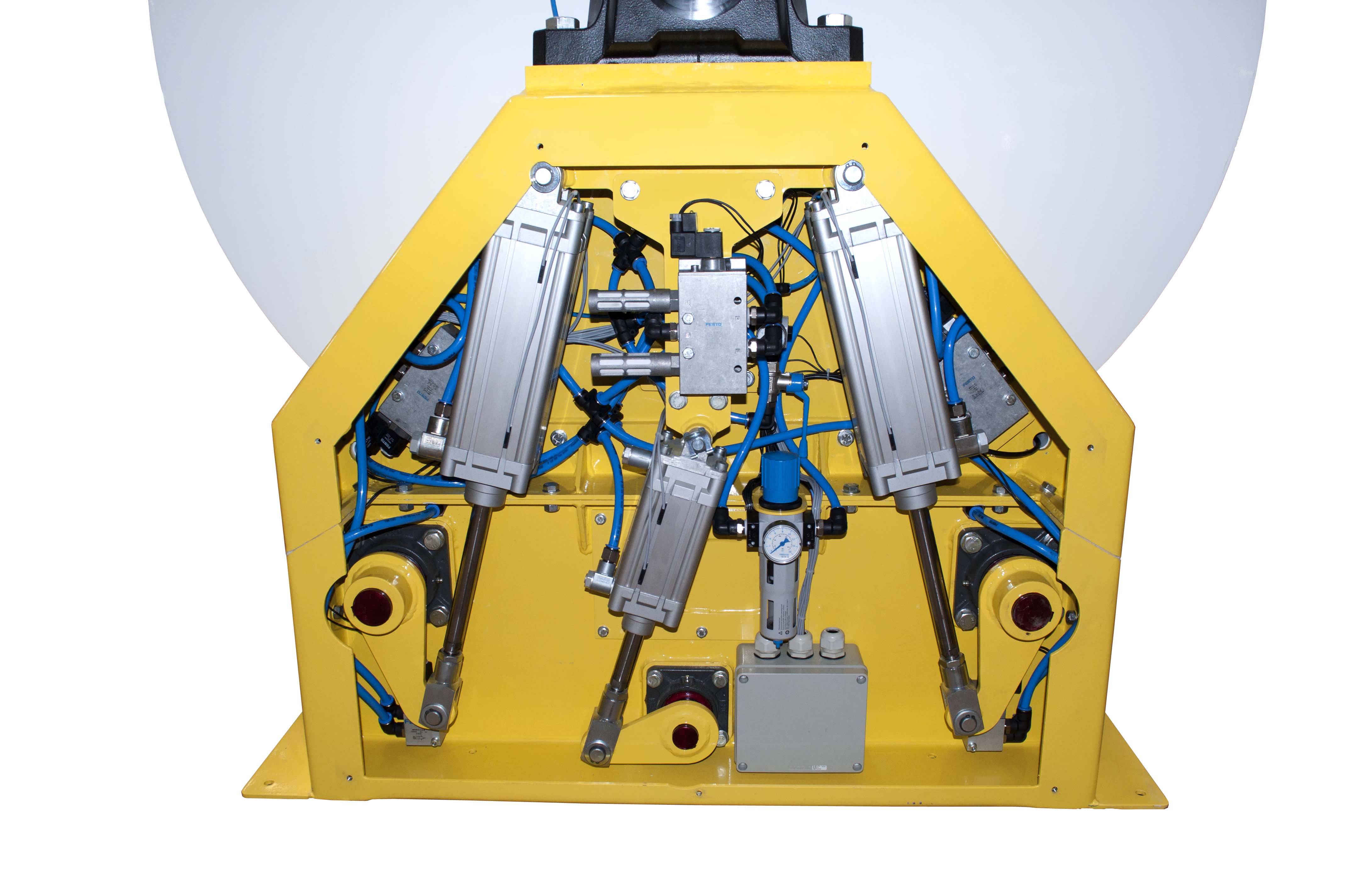

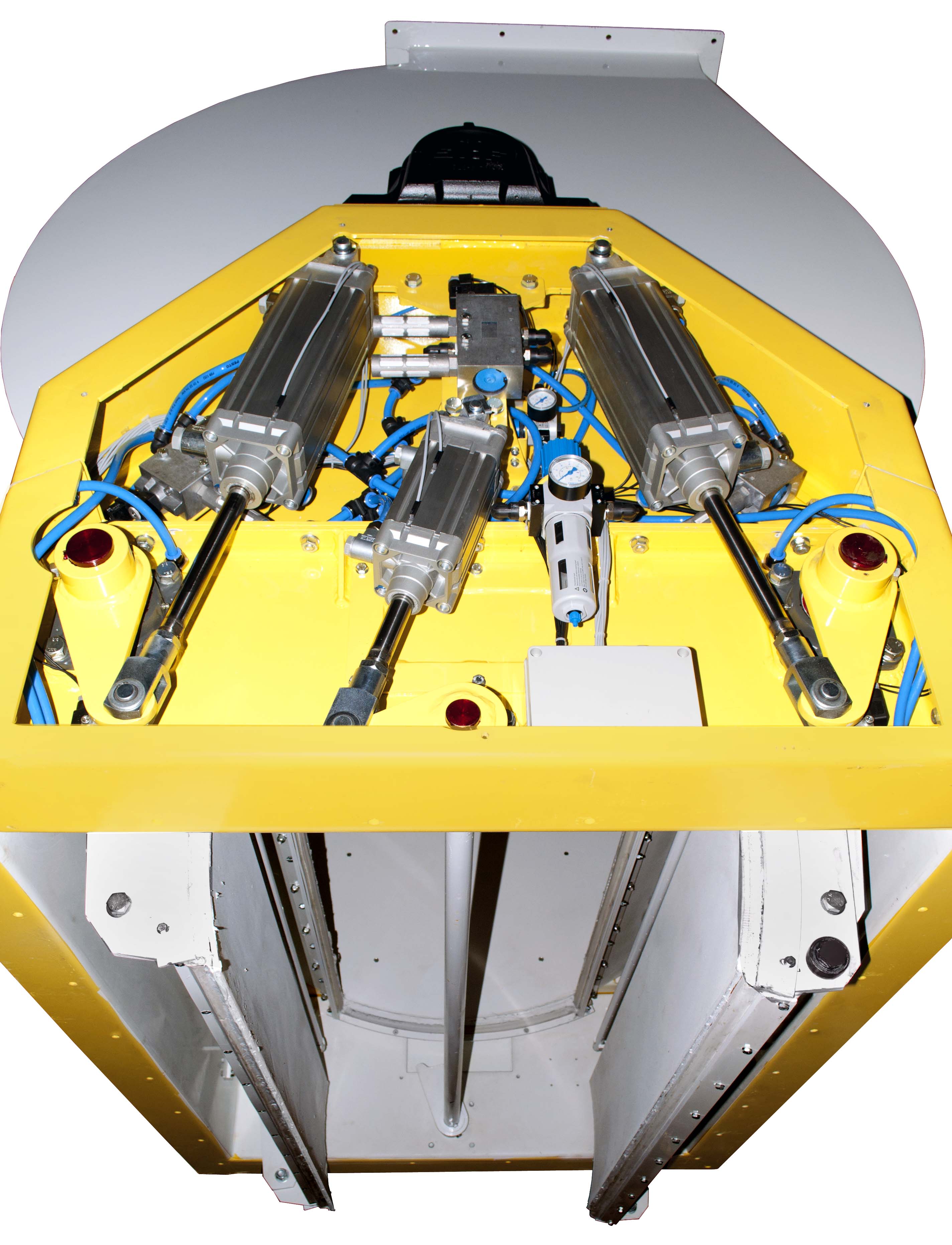

The rapid discharge system consisting of a pneumatically operated bomb gate, opens along the whole mixer length and allows for total emptying in less than 10 seconds. The mixer tank shape, the paddles design and peripheral speed allow for total emptying and reduces mixing time to about 1.5 minutes per batch, still delivering optimal homogeneity in conformity to applicable standards also when adding liquids.
It is possible to increase the hourly throughput as the mixer can produce up to 20 batches per hour or as alternative, when a given throughput is set, it is possible to choose a smaller size mixer, saving power and capital investment.

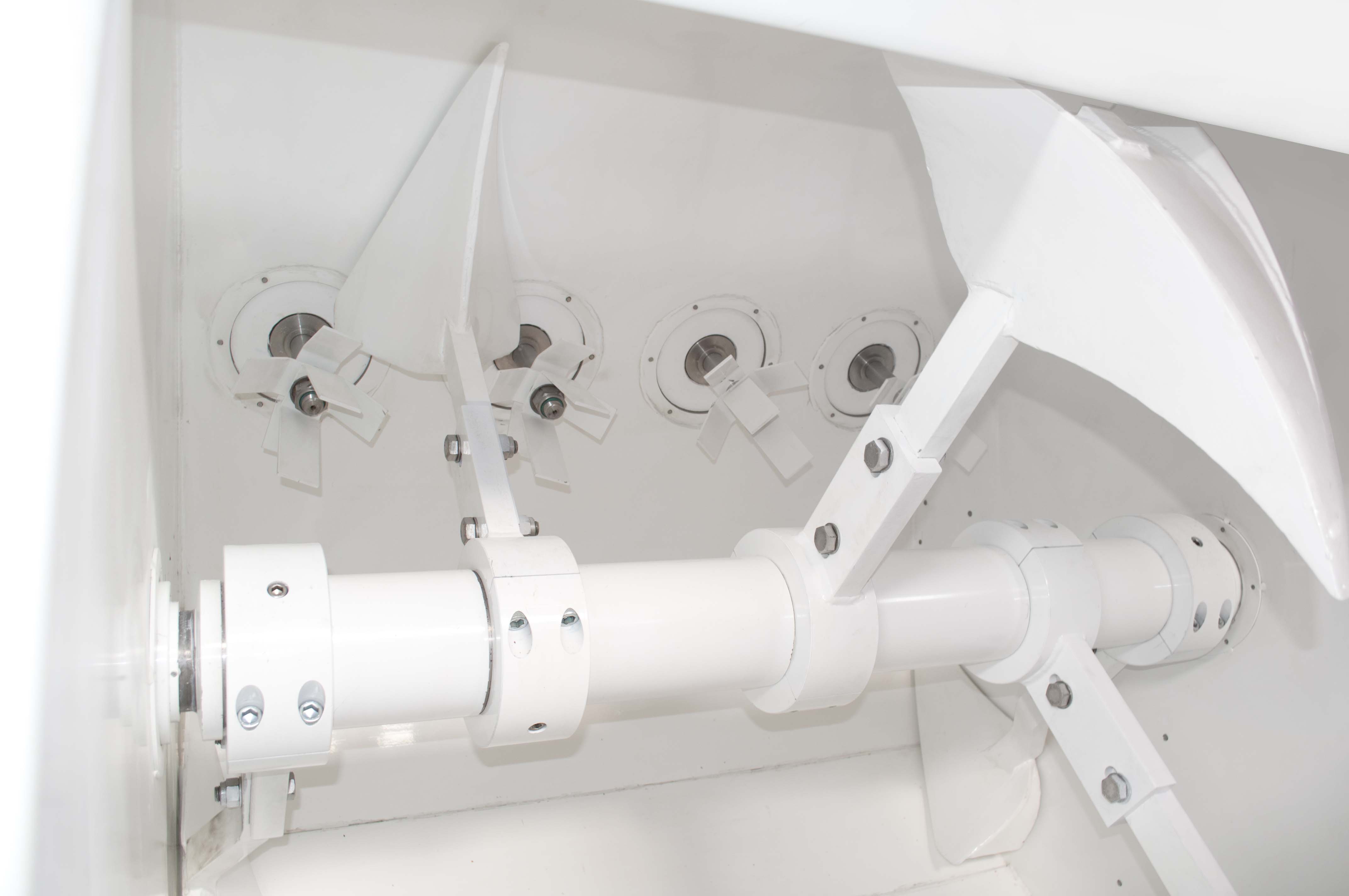

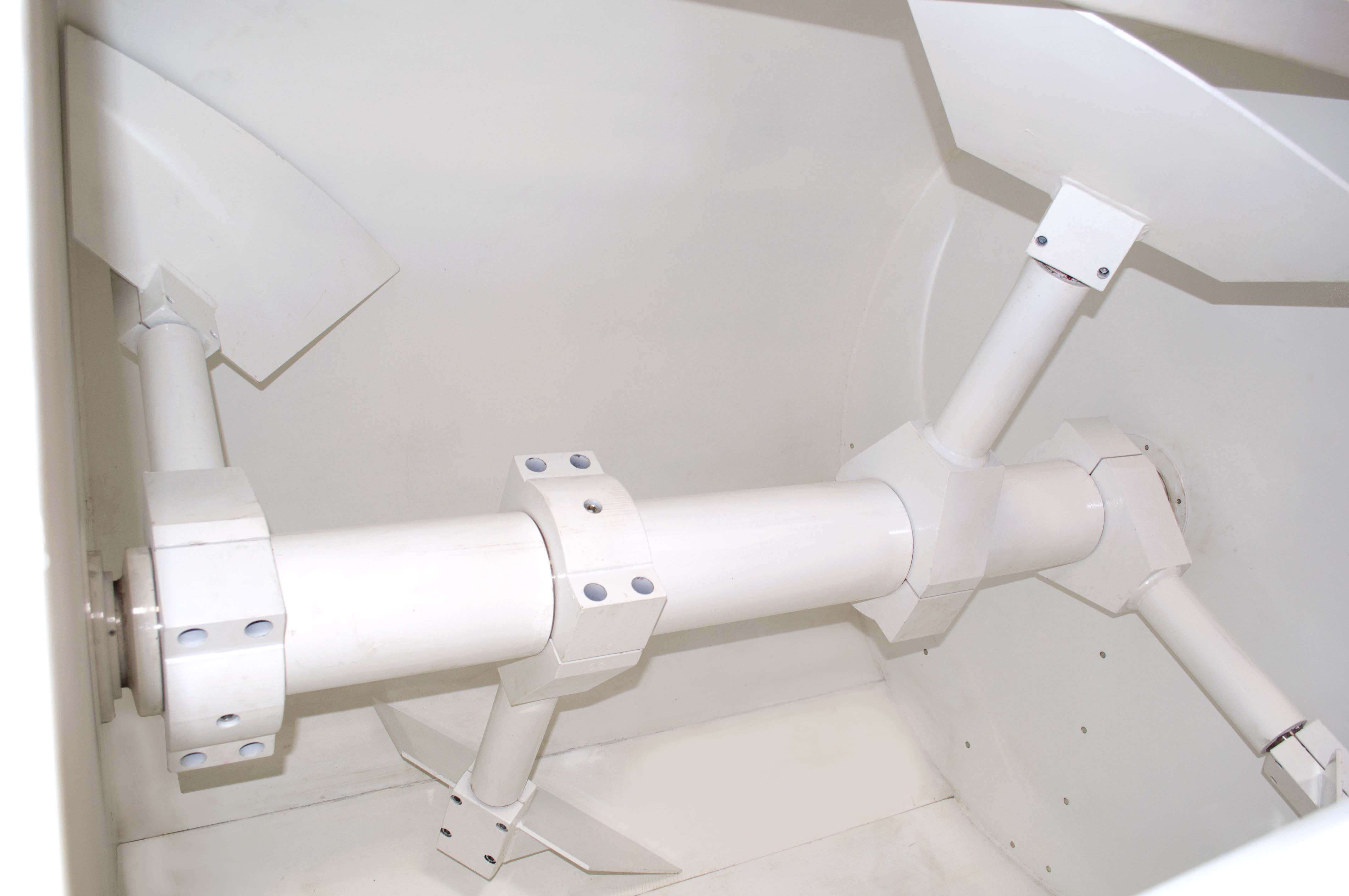

The paddles or ploughs are chosen according to the different products to be mixed, and are easily removable and can be replaced through the lateral door. Once the paddles have been taken off, also the main shaft can be easily removed. The dust seals on the bomb gate can be checked and replaced though the lateral inspection door. The mixer shape has been designed for rapid discharge and cleaning.
