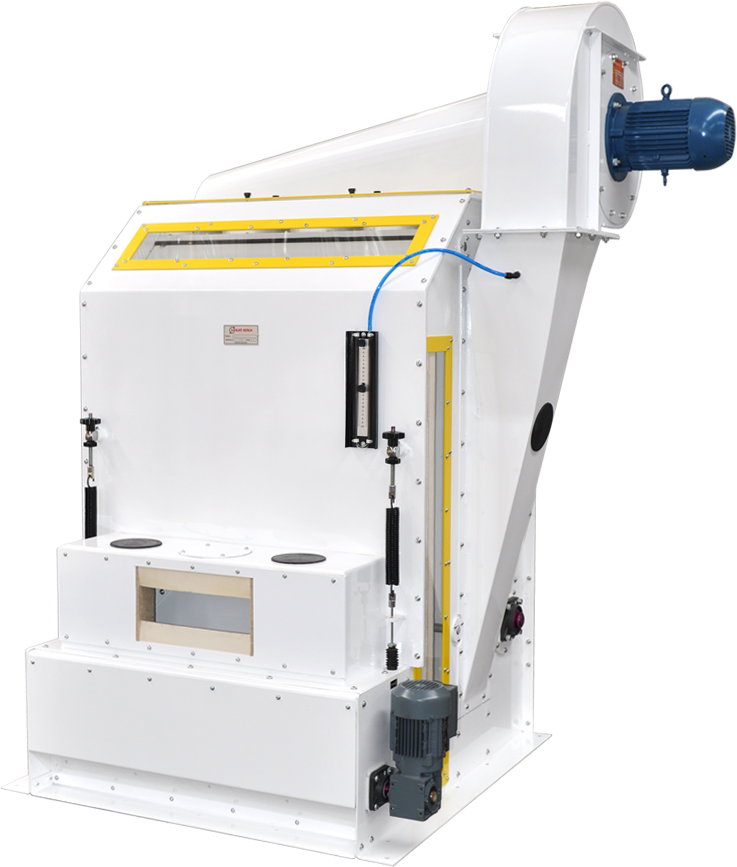

The Recycling Air Separator SCC removes the light and dusting particles from grain products. This machine does not need any connection with aspiration equipment since it is endowed with a precise closed cycle system of air renewal. The impurities are aspirated by air flow through appropriate decanters. The discharge of heavy particles is carried out through the dosing valve and screw.
The use advantages of the closed cycle aspiration air with its relative local decanting are as follows:
- Smaller area occupation;
- No need for filters;
- Total reduction of the parts subject to wear;
Minimum maintenance cost.
This system also eliminates any possibility of environment contamination for not presenting any powder emission.
Its functioning scheme is extremely simple but its multiple adjustments feasibility assign it high performance standard.
The incoming product vibration control allows a perfect distribution all over the aspiration duct; even the product blade thickness is adjustable so as to provide the maximum versatility meeting the highest level cleaning demands.
The movable wall adjustment of the aspiration duct assigns the machine a superior improvement of the cleaning features.
The Recycling Air Separator SCC is predisposed for coupling with cleaners, de-stoners and brushes.
The air purified in the decanters is reintroduced into the aspiration duct at the inferior portion of the product inlet.
